TS Series Ultra-Soft Silicone Foam for Battery Sealing & Cell Cushioning

    TS Series
    TS Series ultra-soft silicone foam is specifically engineered for EV battery modules requiring low-compression-force sealing and cell cushioning. Featuring lightweight construction, excellent resilience and UL94 V-0 flame retardancy, it provides reliable sealing, vibration absorption and protection for battery packs, energy storage systems and industrial lithium-ion batteries.
    Quantity:
    Free Sample
    TS Series Ultra-Soft Silicone Foam

    Product Description
    TS Series ultra-soft closed-cell silicone foam is an advanced engineered elastomeric material specifically formulated for low-closing￾force sealing and cell spacing cushioning within newenergy vehicle lithiumion battery modules. Designed to satisfy stringent EV thermal management and fire safety specifications, the material features ultra-low surface firmness, lightweight low-density construction, gradual elastic rebound and UL94 V‑0 & HF‑1 flame retardancy, predominantly deployed for lowload enclosure gasketing and interstitial padding between battery cells

    Core Technical Attributes
    • Diversified Thickness Availability
    • Ultra-Low Compressive Firmness for Low-Closing Force Sealing
    • Low Specific Gravity & Lightweight Constitution
    • Gradual & Stable Elastic Resilience
    • High-Grade Flame Retardant Classification

    Approved Application Scope
    • Low-closing-force environmental sealing gaskets for battery enclosure housings

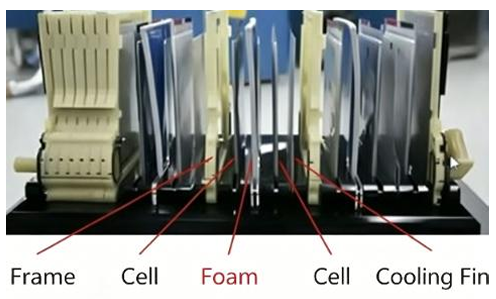

    • Interstitial filling cushion pads installed between adjacent lithium battery cells

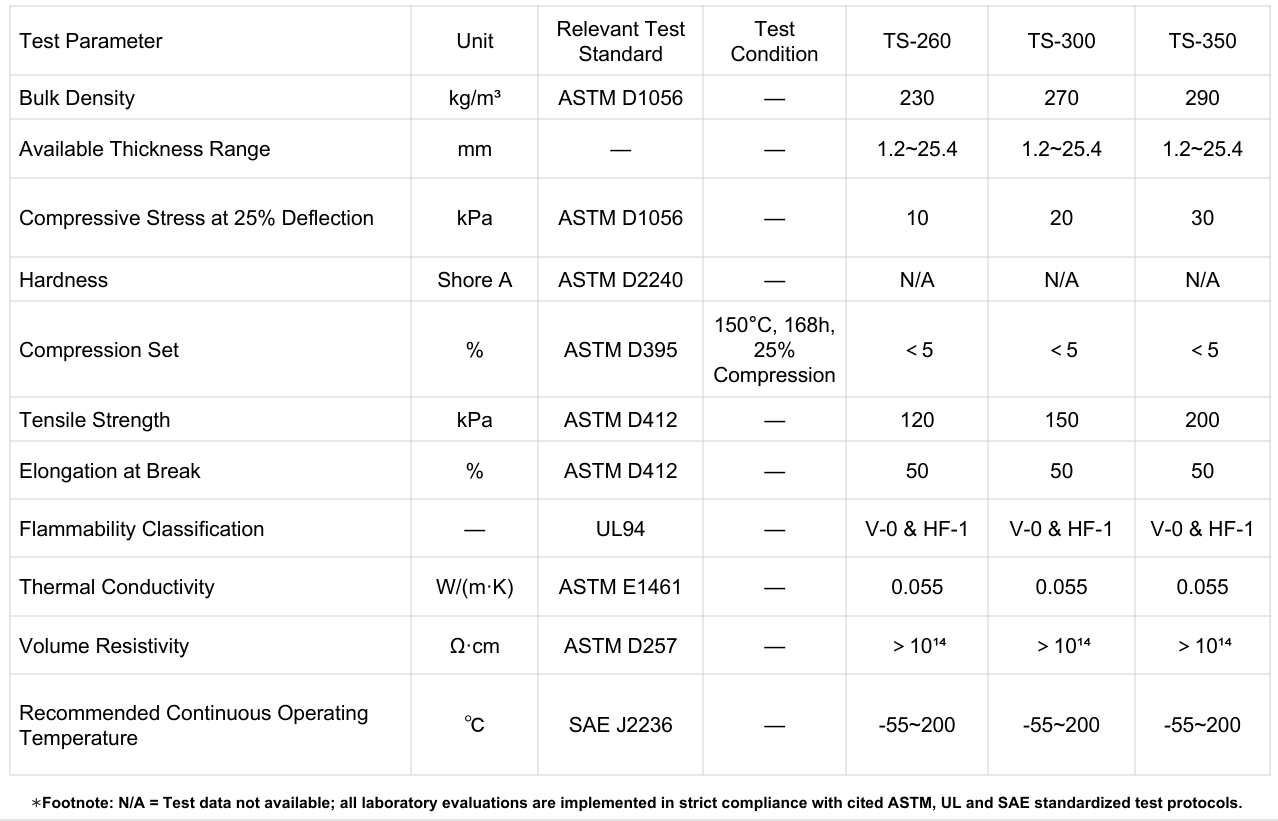

    Physical & Mechanical Property Specifications

    Supplementary Product Information
    1. Standard colour variants: Black, Grey; custom colour pigmentation available upon formal client technical inquiry.
    2. Customized downstream processing options including precision die-cutting, slitting and pressure-sensitive adhesive lamination can be configured in accordance with customers’ certified engineering drawings.
    3. Distinct ultra-soft closed-cell microstructure enables superior conformability under minimal assembly load, well-suited for fragile battery cell cushioning and low-closing-force PACK sealing applications.


    Remark:
