PCM8500 Phase Change Thermal Interface Material
High-Performance PTM7950 Alternative with Ultra-Low Thermal Resistance
PCM8500 is a next-generation phase change thermal interface material (PCM TIM) designed for high-power electronics thermal management. The material delivers excellent heat transfer performance with an ultra-low thermal resistance of 0.04°C·cm²/W, comparable to industry-leading phase change materials such as PTM7950.
At room temperature PCM8500 remains solid, enabling easy handling and automated assembly. When the operating temperature reaches the phase transition point, the material softens and flows microscopically to fill surface irregularities, creating an extremely thin thermal interface layer and reducing contact resistance.
PCM8500 is widely used in CPU, GPU, AI servers, power electronics, telecommunications equipment, and high-power LED modules.
Key Features
- Ultra-Low Thermal Resistance – As low as 0.04°C·cm²/W.
- PTM7950-Level Performance – Comparable thermal performance for demanding electronics cooling.
- Advanced Phase Change Technology – Improves interface wetting during operation.
- No Pump-Out or Dry-Out – Higher reliability than thermal grease.
- Ultra-Thin Bondline – Minimizes thermal interface thickness.

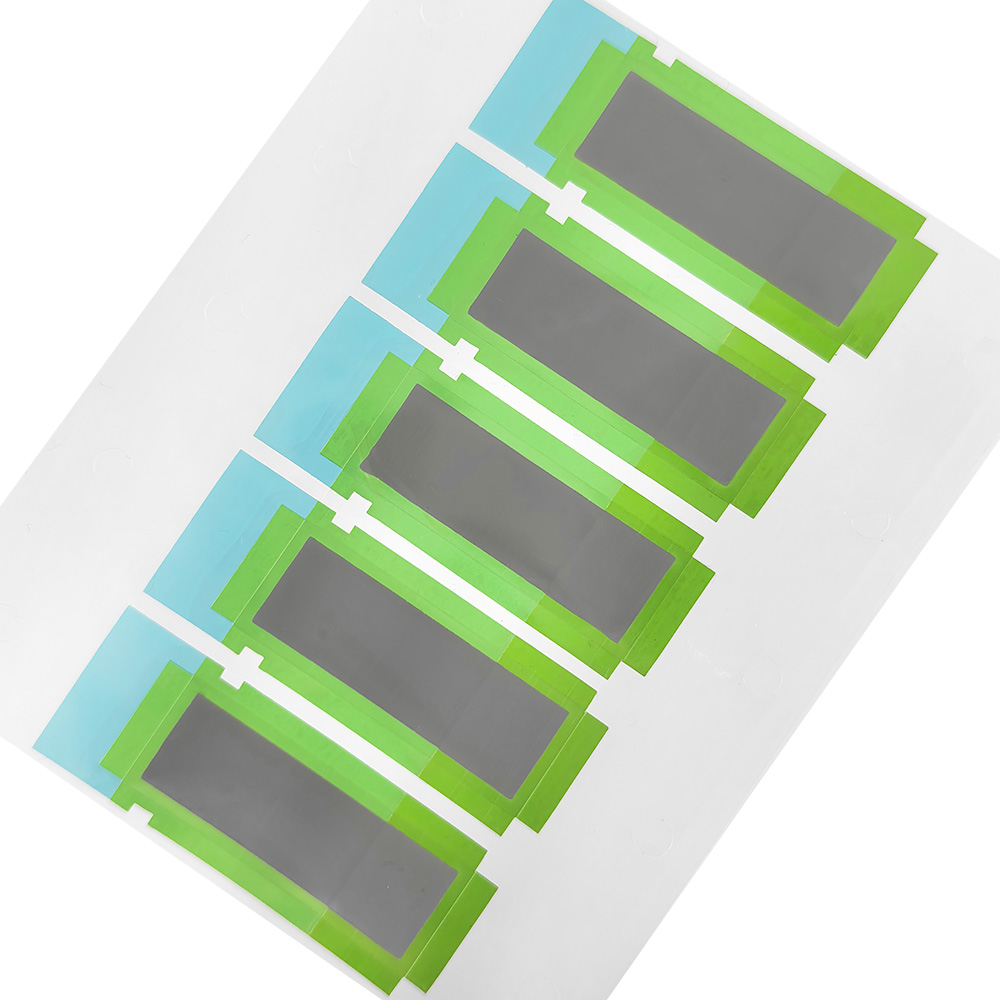

- Flexible Processing – Available in sheet, roll, and die-cut forms.
Typical Applications
- CPU / GPU Cooling
- AI Servers and Data Centers
- Power Electronics Modules
- Telecommunication Equipment
- High-Performance Consumer Electronics
- LED Lighting Systems
Typical Properties
| Property | Value |
|---|---|
| Material Type | Phase Change Thermal Interface Material |
| Color | Gray |
| Thermal Conductivity | 8.5 W/m·K |
| Thermal Resistance | 0.04°C·cm²/W |
| Phase Change Temperature | ~45°C |
| Thickness Options | 0.2 / 0.25 / 0.3 / 0.4 / 0.5 mm |
| Density | ~2.8 g/cm³ |
| Supply Format | Sheets / Rolls / Die-Cut Parts |
| Shelf Life | 12 Months |
Comparison with PTM7950
| Feature | PCM8500 | PTM7950 |
|---|---|---|
| Thermal Resistance | 0.04°C·cm²/W | 0.04 – 0.08 |
| Thermal Conductivity | ~8.5 W/mK | ~8.5 W/mK |
| Phase Change Technology | Yes | Yes |
| Pump-Out Risk | No | No |
| Supply | Stable OEM Supply | Limited Distribution |
| Cost | Competitive | Premium |
PTM7950 Alternative Engineering Guide
Many high-performance electronics manufacturers rely on phase change thermal materials to achieve stable thermal interfaces between heat sources and heat sinks. Materials such as PTM7950 have become widely used due to their ability to provide low thermal resistance and stable long-term performance.
PCM8500 is designed as a reliable alternative solution, providing comparable thermal conductivity and interface resistance while offering advantages in cost efficiency and supply flexibility. Engineers can integrate PCM8500 into existing thermal designs with minimal modification, making it suitable for thermal upgrades or supply chain diversification.
For applications requiring consistent thermal performance, phase change TIM materials like PCM8500 provide an optimal balance between thermal grease and traditional thermal pads.
AI Server and GPU Cooling Thermal Solution
Modern AI computing platforms and high-performance GPUs generate extremely high heat flux densities. Efficient thermal interface materials are essential to maintain system stability and prevent thermal throttling.
PCM8500 provides excellent thermal interface performance for applications including:
- AI accelerator cards
- GPU computing modules
- High-density data center servers
- Machine learning hardware platforms
- High-performance workstation processors
The phase change behavior of PCM8500 ensures improved surface wetting during operation, enabling efficient heat transfer between the processor package and the heat sink.
Thermal Interface Material Selection Guide
Selecting the appropriate thermal interface material is critical for achieving optimal heat dissipation performance in electronic systems. The choice typically depends on factors such as thermal resistance, mechanical reliability, assembly process, and long-term stability.
Compared with traditional solutions:
- Thermal Grease – Excellent conductivity but may suffer from pump-out and dry-out.
- Thermal Pads – Easy to use but often higher interface resistance.
- Phase Change Materials – Provide a balanced solution combining reliability and high thermal performance.
PCM8500 offers a high-performance PCM solution suitable for modern electronics including CPUs, GPUs, power modules, and data center hardware.
Frequently Asked Questions
Can PCM8500 replace PTM7950?
Yes. PCM8500 is designed as a high-performance alternative to PTM7950 and provides comparable thermal interface performance.
Does it require grease-like application?
No. PCM8500 is supplied as a solid sheet or pad and can be installed directly.
Is it suitable for automated production?
Yes. The material supports roll supply and die-cut processing for automated assembly lines.
Request Samples
Looking for a reliable PTM7950 alternative? PCM8500 delivers comparable thermal performance with competitive cost and flexible supply.
