Why Thermal Pads of the Same Thickness Perform Differently

This engineering FAQ addresses one of the most frequently asked questions in thermal management: why thermal pads with the same nominal thickness can deliver significantly different thermal results. The explanation is based on fundamental heat-transfer theory and real-world assembly behavior of thermal interface materials (TIMs).

This article is fully original, written from an engineering perspective, and structured for long-term use on the TOUSEN technical news channel. It is designed to support system designers, FAEs, and reliability engineers working in server, automotive, and consumer electronics applications.

1. Thickness Is a Geometric Parameter, Not a Performance Metric

A common misconception is that thermal performance can be directly inferred from pad thickness. In reality, a thermal pad functions as a compliant thermal interface material, and its performance is governed by the total equivalent thermal resistance (Rth) of the interface stack.

The total Rth can be expressed as:

Rth = R_contact,1 + R_TIM + R_contact,2

• R_TIM: bulk thermal resistance of the pad material itself
• R_contact: contact thermal resistance at both mating surfaces

In practical assemblies, interface contact resistance often accounts for 40–70% of the total Rth. This is the primary reason why two thermal pads of the same thickness may behave very differently once installed in an actual product.

2. Equivalent Thermal Resistance Explains Real Performance Differences

Equivalent thermal resistance (Rth) reflects the true heat-transfer efficiency of a thermal pad under defined pressure and surface conditions. It incorporates not only material conductivity, but also surface conformity and air-gap elimination.

Two thermal pads with identical thickness can show different Rth values due to:

• Differences in compressibility under the same mounting force
• Variation in real contact area after compression
• Elastic recovery and long-term stress relaxation behavior

Lower Rth is typically achieved not by thickness reduction alone, but by maximizing effective contact area while maintaining sufficient bulk conductivity.

3. Rated Thermal Conductivity vs. Effective Thermal Conductivity

Datasheet thermal conductivity values are usually measured under controlled laboratory conditions. However, these values represent theoretical material capability rather than in-assembly performance.

The effective thermal conductivity (k_eff) inside a real system is influenced by:

• Applied pressure during installation
• Surface flatness and roughness of mating components
• Internal filler network continuity within the silicone matrix

As a result, thermal pads with the same nominal conductivity and thickness can produce very different temperature outcomes when evaluated at the system level.

4. Filler System Design Is a Key Differentiator

Beyond thickness, the internal filler system plays a decisive role in thermal performance. Even when using the same filler type, such as alumina or aluminum nitride, formulation-level engineering creates measurable differences.

• Particle size distribution and multi-modal grading
• Filler loading ratio and dispersion uniformity
• Particle surface treatment and interface bonding
• Formation of continuous heat-conduction pathways

Efficient thermal pads rely on a dense and stable conduction network. Discontinuous filler contact leads to localized heat resistance and elevated junction temperatures, even when pad thickness remains unchanged.

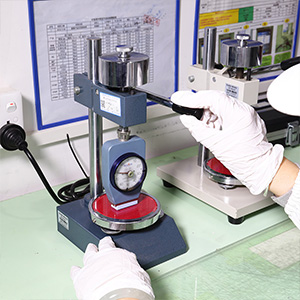

5. Compressibility, Contact Area, and Rth Curves

From an engineering perspective, the relationship between compression and Rth is best illustrated through Rth-versus-pressure curves.

As compression increases:

• Microscopic air gaps are eliminated
• Real contact area expands
• Interface contact resistance decreases rapidly

However, once optimal compression is reached, further force produces diminishing returns. Different brands exhibit different Rth curve slopes, explaining why performance divergence becomes more pronounced under limited mounting pressure.

6. Summary: Why Same Thickness Does Not Mean Same Result

In summary, thermal pads of the same thickness can perform very differently because:

• Thickness does not capture interface contact behavior
• Equivalent thermal resistance (Rth) dominates real performance
• Compressibility and elastic response vary by formulation
• Filler system engineering determines heat-flow continuity

For reliable thermal design, engineers should evaluate thermal pads based on Rth under defined pressure, long-term mechanical stability, and application-specific assembly conditions—rather than thickness alone.

This engineering approach enables more predictable thermal outcomes and reduces risk during system validation and mass production.
