1. Introduction to Thermal Interface Materials (TIMs)

In modern CPU cooling systems, choosing between a thermal paste and a thermal pad depends on the specific application requirements rather than a simple “better or worse” judgment. Both are designed to fill microscopic air gaps between the CPU and the heatsink, thereby minimizing thermal resistance and maximizing heat transfer efficiency.

With over 15 years of expertise in thermal management, TOUSEN® Thermal Solutions emphasizes that the optimal TIM selection depends on parameters such as surface roughness, contact pressure, temperature cycling, and long-term material stability.

2. Technical Attributes and Performance Comparison

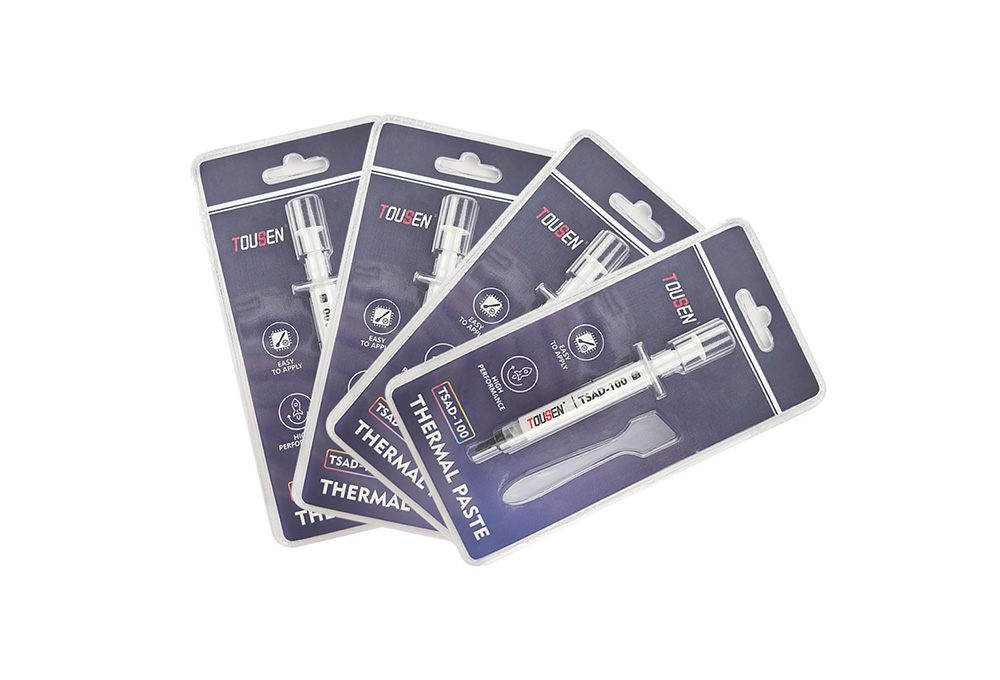

2.1 Thermal Paste — High Conductivity for Ultra-Thin Interfaces

Thermal pastes are typically silicone- or metal-based compounds designed for ultra-thin bond lines (0.02–0.1 mm). Their fluid consistency allows excellent surface conformity and minimal contact resistance.

Within the TOUSEN® AD Series, measured thermal resistance values reach as low as 0.025 °C·cm²/W.

• Low Thermal Resistance: Ideal for high-pressure assemblies such as clamped CPU sockets.
• Excellent Microgap Filling: Eliminates trapped air pockets on polished surfaces.
• Process Flexibility: Compatible with dispensing, screen printing, or manual application.

Limitations: Under thermal cycling or vibration, “pump-out” effects may occur, requiring reapplication. Not recommended for bond line thicknesses exceeding 0.1 mm.

2.2 Thermal Pad — Stable and Durable Gap-Bridge Solution

Thermal pads consist of a silicone polymer matrix infused with ceramic or graphene fillers. They provide reliable performance in interfaces exceeding 0.3 mm. The TOUSEN® Graphene-Enhanced Pad Series achieves thermal conductivity up to 45 W/m·K, combining mechanical stability and electrical insulation.

• Structural Integrity: Maintains form under compression, avoiding leakage or drying.
• Electrical Insulation: Suitable for applications requiring dielectric protection.
• Ease of Assembly: Pre-cut pads simplify manufacturing and reduce human error.

Limitations: Higher intrinsic thermal resistance (0.2–0.4 °C·cm²/W); unsuitable for interfaces thinner than 0.3 mm.

3. Application Recommendations

4. TOUSEN® Empirical Validation (ASTM D5470 Standard)

* All measurements comply with ASTM D5470 testing protocols. See the TOUSEN® TIM Selection Matrix white paper for detailed methodology.

5. Conclusion: Context-Dependent Selection Logic

Neither thermal paste nor thermal pad is universally superior—the decision must align with interface gap tolerance, mechanical stress, and performance objectives. TOUSEN® recommends prototype validation and thermal simulation during the design stage to ensure optimal system-level heat performance.

6. Learn More & Technical Consultation

For detailed datasheets, material samples, or prototype support, please visit www.itousen.com or contact the TOUSEN® Technical Support Team for project-specific recommendations and performance assessments.

TOUSEN® — Precision Thermal Management Solutions Since 2005
