    High Performance Thermal Pad Solutions for EV Charging Systems

    author: CHACE / Tousen Thermal Management Engineering Team
    2026-04-15
    {当前产品的产品关键词轮巡使用}

    Engineering Insight into EV Charging Station Thermal Management: Optimizing Performance with Advanced Thermal Pad Solutions

    With the rapid expansion of the electric vehicle (EV) market, charging infrastructure has become a critical component of the energy ecosystem. As power levels continue to increase—especially in fast-charging systems—thermal management within charging stations is no longer optional; it is essential for safety, efficiency, and long-term reliability.

    From an engineering standpoint, one of the most effective and widely adopted solutions is the use of thermal pad materials. Proper integration of a high-performance thermal pad can significantly improve heat transfer efficiency and reduce thermal resistance at critical interfaces.


    Thermal Challenges in EV Charging Stations

    Designing a reliable charging station involves addressing several thermal challenges:

    • High power density: Components such as IGBTs and MOSFETs generate substantial heat during operation.
    • Compact system design: Limited internal space restricts traditional cooling methods.
    • Harsh environments: Outdoor installations must withstand temperature fluctuations, humidity, and contaminants.
    • Long-term reliability: Materials must maintain consistent performance over extended operational cycles.

    To address these issues, engineers increasingly rely on thermal pad materials to create efficient thermal pathways within the system.


    How Thermal Pad Materials Improve Heat Transfer

    A thermal pad functions as a thermal interface material (TIM), designed to fill microscopic air gaps between heat-generating components and heat sinks. Since air is a poor thermal conductor, eliminating these gaps dramatically enhances heat transfer efficiency.

    Compared to alternatives such as thermal grease or rigid insulators, a high-quality thermal pad offers several advantages:

    • Excellent conformability to uneven surfaces
    • Stable thermal performance over time
    • Strong dielectric insulation properties
    • Ease of installation and consistent application

    These characteristics make thermal pad solutions particularly suitable for high-voltage EV charging applications.


    Typical Thermal Pad Application Areas in Charging Stations

    1. Power Modules (IGBTs / MOSFETs)

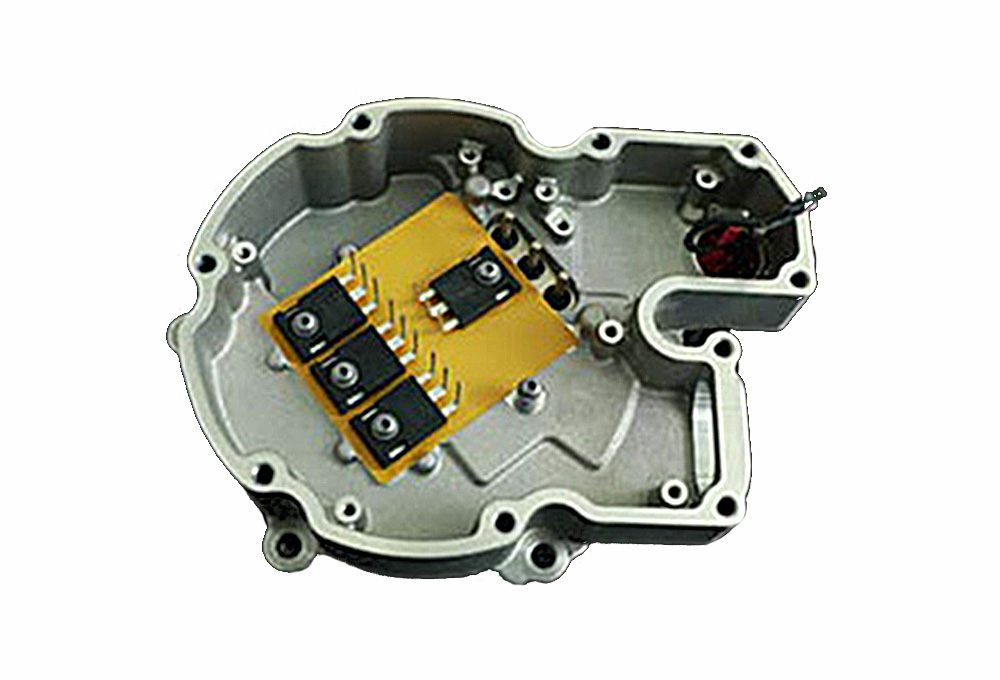

    Power semiconductors are the primary heat sources in charging systems. A thermal pad is placed between the device and the aluminum heat sink to:

    • Minimize contact thermal resistance
    • Ensure uniform heat conduction
    • Enhance overall cooling efficiency

    2. AC/DC and DC/DC Conversion Units

    Rectifiers and converters operate continuously under high load. Integrating a thermal pad ensures stable thermal performance and prevents overheating during peak operation.

    3. PCB Hotspot Management

    Critical ICs such as microcontrollers and power management chips benefit from localized cooling. A thermal pad can transfer heat from these components to the enclosure or auxiliary heat spreaders.

    4. Magnetic Components (Inductors & Transformers)

    These components accumulate heat during prolonged use. Applying a thermal pad at the base improves heat dissipation into the chassis structure.


    Key Selection Criteria for Thermal Pad Materials

    Selecting the appropriate thermal pad requires careful evaluation of several parameters:

    • Thermal conductivity (W/m·K): Determines heat transfer capability
    • Thickness (mm): Must match mechanical tolerances
    • Compressibility: Ensures optimal surface contact
    • Operating temperature range: Supports environmental conditions
    • Flame rating: Meets safety standards such as UL94 V-0

    For high-power fast chargers, engineers typically recommend a thermal pad with thermal conductivity of 5.0 W/m·K or higher.


    Recommended Solution: SF500 Silicone Thermal Pad

    In practical applications, selecting a proven thermal pad is critical to system performance. The SF500 silicone-based thermal pad is engineered to meet the demanding requirements of EV charging systems.

    Key Specifications:

    • Thermal conductivity: 5.0 W/m·K
    • Operating temperature: -40°C to 200°C
    • Excellent softness and gap-filling capability
    • High dielectric strength
    • UL94 V-0 flame retardant rating

    Application Benefits:

    • Improves thermal coupling between power devices and heat sinks
    • Enhances PCB thermal management
    • Reduces component operating temperature by up to 10°C
    • Supports long-term reliability in harsh environments

    For more detailed information, visit:
    //www.itousen.com/sf500-silicone-thermal-pad.html


    Engineering Best Practices for Thermal Pad Integration

    • Match pad thickness with assembly tolerances to avoid over-compression
    • Design clear thermal pathways for efficient heat flow
    • Ensure clean contact surfaces during installation
    • Utilize thermal simulation tools for optimization
    • Perform long-term reliability and aging tests

    Conclusion

    From an engineering perspective, the thermal pad is not merely an auxiliary material—it is a critical component in the thermal management strategy of EV charging stations. As charging power levels continue to rise, the demand for high-performance thermal pad solutions will only increase.

    By combining proper material selection with optimized system design, engineers can effectively manage heat, extend equipment lifespan, and ensure safe, reliable operation. Advanced thermal pad technologies will continue to play a vital role in supporting the evolution of next-generation EV infrastructure.
