TF40 BN Film vs Graphite Sheet: Engineering Comparison for Advanced Thermal Design
TF40 BN Thin Film vs. Synthetic Graphite Sheet — An Engineer's Technical Comparison
Modern electronic systems present a simultaneous set of requirements: high heat flux handling, minimal thickness, stringent electrical isolation and uncompromised signal integrity. Choosing the correct thermal interface material is therefore a system-level decision. This document provides a rigorous technical comparison between TF40 BN thin film and the Synthetic Graphite Sheet, explains the practical consequences for electrical signal behavior, and highlights why BN thin film solutions are used in applications where a graphite sheet cannot be applied.
Both product pages are referenced for quick technical checks: Tousen TF40 (BN thin film) — TF40 BN thin film, and Synthetic Graphite Sheet — Synthetic Graphite Sheet.

Executive summary

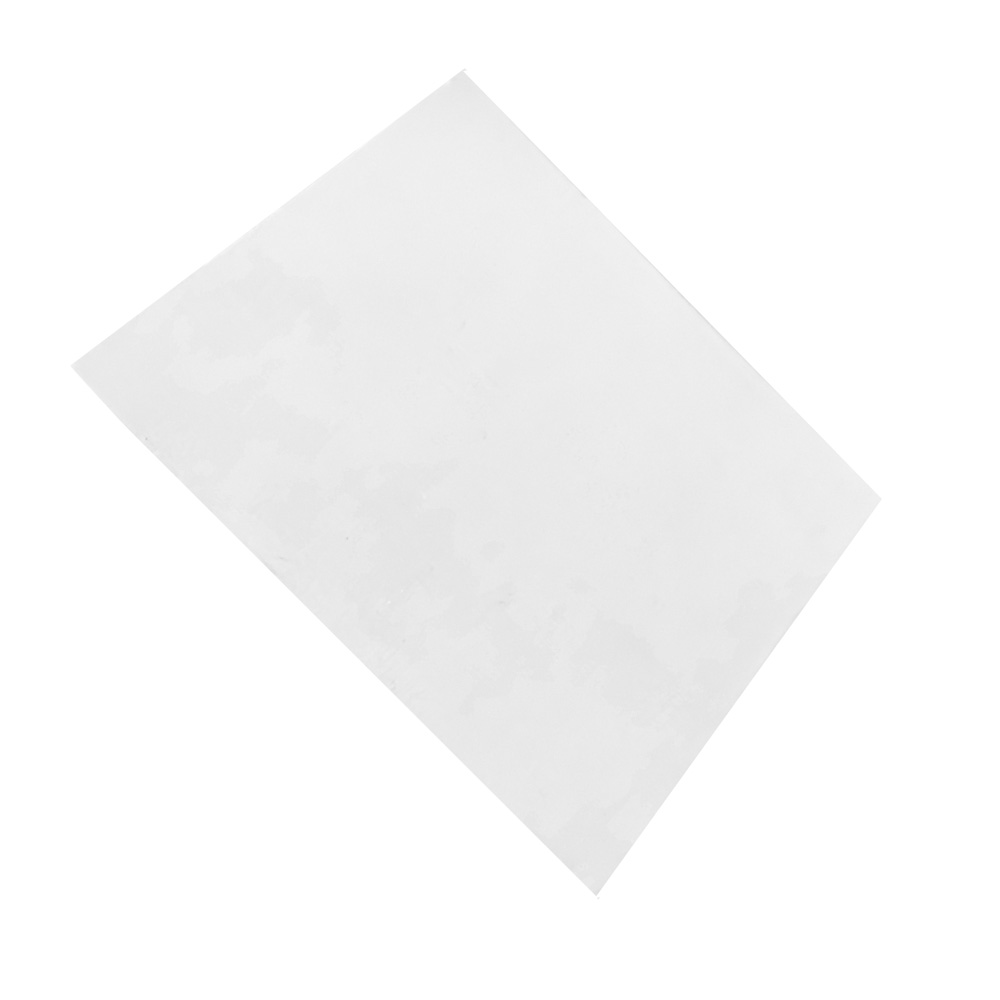

At a high level: TF40 BN thin film is a pure boron nitride insulating film engineered for thin-profile thermal conduction while maintaining high dielectric strength. In contrast, a Synthetic Graphite Sheet is a carbon-based, electrically conductive sheet optimized for in-plane heat spreading. Where graphite sheet excels in lateral spreading, BN thin film uniquely combines thermal conduction with electrical insulation and low interaction with electronic signals.
Material fundamentals and implications
BN thin film (boron nitride film) and graphite sheet are different by chemistry and physical behavior. The BN film is an electrical insulator with ceramic-like bonding and high temperature stability. The graphite sheet is a layered carbon material with excellent in-plane lattice conduction but electronic conductivity that couples to nearby circuits. These fundamental differences determine how each material affects thermal path, electrical safety and signal integrity.
Thermal performance: in-plane vs. through-plane
The performance trade-off is clear. The Synthetic Graphite Sheet typically provides extremely high in-plane thermal conductivity (thermal spreading, X/Y), which makes graphite sheet an excellent choice when a point source's heat must be distributed across a chassis or panel. However, the graphite sheet's through-plane (Z-axis) conduction is comparatively low. By contrast, a well-engineered BN thin film such as TF40 (30 μm) offers a low-thickness thermal path and low interface thermal resistance for direct heat transfer between a device and a heatsink while remaining electrically insulating.
Electrical insulation and dielectric behavior
Electrical insulation is the decisive differentiator. The TF40 BN thin film provides high dielectric strength and negligible electrical conductivity. This makes the BN film suitable for contact with exposed conductors, power-semiconductor terminals, and battery modules where safety and isolation are mandatory. The Synthetic Graphite Sheet, being electrically conductive, cannot be placed in direct contact with live or sensitive nodes without additional insulation layers or protective design provisions.
Signal integrity and electromagnetic interaction
Often overlooked in thermal decisions is the effect on electronic signal integrity. A conductive graphite sheet positioned near high-speed traces or RF structures can alter electromagnetic fields: it can introduce parasitic capacitance, modify return current paths, and degrade shielding by creating unintended conductive planes. These interactions are functionally significant for RF PAs, LNAs, high-speed SERDES lanes, and on-board wireless transceivers.
By contrast, the TF40 BN thin film has negligible electrical conductivity and low dielectric loss. As a BN film, it does not create parasitic conductive planes and therefore has a near-zero impact on signal rise times, insertion loss and EMI behavior. When signal purity is critical — base station RF modules, GaN front-ends, or sensitive receivers — the BN thin film is the appropriate choice.
Mechanical and interface properties
TF40’s 30 μm thickness places it in the class of ultra-thin, conformal insulating thermal interfaces. A properly processed BN film provides consistent surface finish, low interface roughness, and very low contact thermal resistance in clamped assemblies. Graphite sheet is flexible and thin but does not provide compliant gap filling; the graphite sheet cannot compensate for significant surface irregularity or provide the same interface conduction efficiency in non-ideal mechanical assemblies.
High-temperature stability and reliability
Boron nitride’s oxidation resistance and thermal stability are superior in oxidizing atmospheres. The BN thin film operates reliably at temperatures where graphite sheet in air would oxidize and degrade. For elevated-temperature environments and long-term reliability, the BN film demonstrates clear advantages.
Application-driven selection guidance
The correct material depends on the system requirement. We summarize practical guidance below.
| Application | Recommended Material | Reason |
|---|---|---|
| Battery module (high-voltage) | TF40 BN thin film | Electrical insulation + thermal conduction |
| GaN/SiC power stage | TF40 BN thin film | High dV/dt, isolation, minimal signal coupling |
| Mobile device chassis heat spreading | Synthetic Graphite Sheet | Exceptional in-plane spreading, thin and light |
| LED panel lateral heat distribution | Synthetic Graphite Sheet | Planar spreading to housing |
| RF front-end next to antenna | TF40 BN thin film | No parasitic coupling; preserves RF performance |
Why TF40 commands a premium over graphite sheet
Several engineering and manufacturing reasons explain the cost differential. Producing ultra-thin, uniform BN thin film requires controlled deposition, high-purity boron nitride feedstock and precision handling. The film’s performance is a combination of material purity, layer orientation and finishing. In addition, the value delivered — thermal conduction combined with electrical isolation and minimal signal interaction — often justifies the premium in high-reliability systems.
Integration best practices
- When you select TF40 BN thin film, treat the film as a direct insulating thermal interface. Confirm clamping pressure, surface planarity and thermal grease/adhesive compatibility where used.
- When you use a Synthetic Graphite Sheet, ensure the graphite sheet is isolated from live nets and sensitive traces by design (insulative barriers, coated edges, or dedicated mechanical separation).
- For hybrid designs, combine a BN film at regions requiring isolation with a graphite sheet where planar spreading provides the best thermal dividend.
Practical case example
In an inverter for traction applications, we applied TF40 BN thin film at the MOSFET module interface to maintain dielectric separation at 600 V while enabling low thermal resistance to a copper cold plate. Adjacent busbar areas used a Synthetic Graphite Sheet to redistribute heat laterally to a common chassis. The combined approach reduced device junction temperature by several degrees while maintaining system insulation and passing EMI qualification tests.
Conclusion
Material selection is not a question of universally better or worse; it is a system-level optimization. For lateral heat spreading in space-limited consumer devices, the Synthetic Graphite Sheet remains a highly effective solution. Where electrical insulation, signal integrity and high-temperature reliability are required, the TF40 BN thin film is the appropriate engineering choice.
For engineering teams evaluating thermal solutions, begin with the system constraints (voltage, signal sensitivity, mechanical tolerance, ambient environment) and then map those constraints to material properties: if electrical isolation and low interface thermal resistance are mandatory, select a BN thin film such as TF40; if lateral spreading is the primary need and electrical isolation can be handled separately, a graphite sheet provides unmatched spreading efficiency.
