Thermal Pads for Telecommunications Equipment and Reliable Heat Management

As telecommunications networks evolve toward 5G, higher data throughput, and increasingly distributed computing, thermal management has become a critical design consideration. Base stations, radio frequency modules, optical transceivers, network switches, routers, and power conversion units must operate reliably despite rising power density and limited installation space. In these systems, a properly selected thermal pad can help transfer heat from electronic components to heat sinks, metal housings, or other cooling structures.

For engineers and equipment manufacturers, selecting a thermal pad involves more than comparing thermal conductivity ratings. Interface thickness, compression force, electrical insulation, temperature resistance, assembly tolerances, and long-term stability all influence actual performance. This article examines how thermal pads support telecommunications equipment and explains how to evaluate a suitable solution for demanding operating environments.

1. Why Thermal Management Matters in Telecommunications

Modern telecommunications equipment integrates RF power amplifiers, processors, field-programmable gate arrays (FPGAs), power management components, and high-speed optical interfaces into compact assemblies. These components generate heat during continuous operation. If the heat cannot be transferred efficiently to the cooling structure, component temperatures may exceed their design limits, potentially causing performance degradation, accelerated aging, or unexpected system shutdowns.

Mechanical tolerances create another challenge. Component heights, printed circuit board flatness, heat sink dimensions, and enclosure geometry are rarely perfectly uniform. Small gaps between a heat-generating component and a cooling surface can trap air, increasing thermal resistance. A suitable thermal pad fills these gaps and creates a more effective thermal pathway.

In outdoor base stations and remote radio units, the thermal interface must also withstand temperature cycling, humidity, vibration, and prolonged operation. Indoor switches and data transmission equipment may face different constraints, including limited airflow, high component density, and restricted maintenance access. Therefore, thermal interface material selection should reflect the actual operating environment rather than a generic application category.

2. Key Telecommunications Applications for Thermal Pads

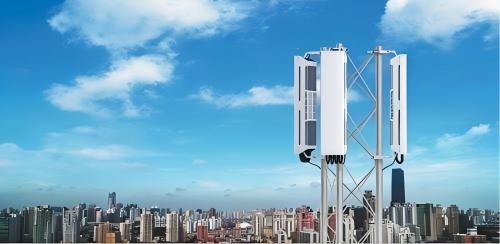

5G Base Stations and Remote Radio Units

RF power amplifiers and associated power electronics can generate substantial localized heat. A thermal pad placed between an appropriate component surface and a heat sink or metal enclosure helps bridge assembly gaps and reduce interface-related thermal resistance. Where the component requires electrical isolation from the cooling structure, engineers should verify the dielectric properties of the selected material under the actual operating voltage and mechanical conditions.

Optical Transceivers and High-Speed Communication Modules

High-speed optical modules must maintain stable operating conditions as data rates and integration levels increase. Depending on the package design, a thin or precisely dimensioned thermal pad may be used to transfer heat from a module housing or designated contact surface to a chassis or heat spreader. Available clearance, contact pressure, and the thermal limits of nearby optical components must be considered during selection.

Network Switches and Routers

High-density switches and routers contain processors, switching ASICs, memory devices, and power conversion components. Different components may have different heights and heat dissipation requirements. Appropriately specified thermal pads can accommodate defined interface gaps between these components and a common cooling assembly. Die-cut shapes and controlled thicknesses can also simplify placement and improve manufacturing consistency.

Telecommunications Power Supplies

Power supplies and DC conversion modules contain MOSFETs, rectifiers, inductors, and other heat-generating components. In applications where a component transfers heat to a conductive metal plate, a thermally conductive and electrically insulating pad may provide both interface heat transfer and electrical separation, provided the selected grade meets the relevant insulation requirements.

3. How to Select the Right Thermal Pad

A reliable selection process begins with the assembled interface rather than the highest available conductivity rating. The following parameters should be reviewed during design and qualification.

• Thermal conductivity: Measured in W/(m·K), this indicates the material's ability to conduct heat. It is useful for comparing grades, but it does not independently determine the thermal resistance of the completed interface.
• Thickness: Select a thickness that accommodates the measured gap and its tolerance. An unnecessarily thick thermal interface increases the heat transfer distance.
• Hardness and compressibility: The material must conform to the mating surfaces without requiring excessive assembly force. Compression characteristics should be checked across the full tolerance range.
• Electrical insulation: Confirm dielectric strength, breakdown voltage, and other relevant electrical properties when isolation is required.
• Operating temperature: Evaluate the continuous operating range and the effects of temperature cycling on the material's mechanical and thermal properties.
• Long-term reliability: Consider compression set, aging, vibration, humidity exposure, and the potential for material migration or contamination.
• Manufacturing compatibility: Check dimensional tolerances, die-cut accuracy, handling requirements, liner removal, and suitability for manual or automated assembly.

The thermal resistance of the material layer can be approximated under idealized one-dimensional conditions using R = t/(k × A), where R is the material's bulk thermal resistance, t is its thickness, k is thermal conductivity, and A is the effective heat transfer area. Actual interface performance also depends on contact resistance, surface condition, compression, and the surrounding cooling system. Engineers should therefore validate the complete assembly rather than relying on this simplified relationship alone.

4. Why Silicone Thermal Pads Are Widely Used

Silicone-based thermal pads are commonly considered for telecommunications electronics because their flexible elastomeric structure can accommodate defined gaps and certain variations in component height. Depending on the formulation, these materials can combine thermal conductivity with useful compressibility and electrical insulation.

Compared with a dispensed thermal compound, a preformed thermal pad has a defined shape and nominal thickness before assembly. This can simplify material placement, reduce application variability, and support repeatable production processes. Pads are particularly practical when the interface has a measurable gap or when a consistent, clean assembly method is preferred.

However, silicone thermal pads are not suitable for every application. Very thin, highly uniform interfaces may benefit from thermal grease or another low-bond-line material. Equipment with strict silicone contamination or outgassing restrictions may require a qualified silicone-free alternative. The decision should be based on package design, environmental requirements, and verified material data.

5. Integrating TOUSEN Silicone Thermal Pads into Telecommunications Designs

TOUSEN offers silicone thermal pad solutions for electronic thermal management applications. Its product range can be evaluated for telecommunications equipment where engineers need a practical interface between heat-generating components and cooling structures.

Explore the product range: TOUSEN Silicone Thermal Pads.

For a specific communications project, the appropriate grade should be selected according to the component power dissipation, interface gap, allowable compression force, electrical requirements, and operating environment. Engineers should review the current product datasheet to confirm available thermal conductivity grades, thicknesses, hardness, temperature limits, and dielectric properties rather than assuming that all specifications apply to every product in the range.

Where multiple components require different interface dimensions, customized pad geometry may help align the material with the mechanical design. Before mass production, prototype testing should verify contact coverage, mounting pressure, temperature distribution, and compatibility with the intended assembly process.

6. Installation and Reliability Considerations

Even a well-selected thermal pad can underperform if it is installed incorrectly. The component and heat sink surfaces should be clean and free from debris that could prevent proper contact. Protective liners must be removed as instructed, and the pad must be positioned without folds, wrinkles, or unintended overlap.

Assembly pressure is equally important. Insufficient compression may leave air gaps, while excessive compression can stress a PCB, deform a component package, or damage the interface material. The clamping system should therefore be designed around the material's recommended compression conditions and the mechanical limits of the complete assembly.

For outdoor telecommunications equipment, validation should include representative temperature cycling and environmental exposure where relevant. Thermal measurements should be taken under realistic operating loads, with attention to component temperatures, ambient conditions, airflow, and the performance of the complete cooling system. Inspection criteria and replacement procedures should also be established where equipment maintenance is required.

7. Conclusion

Reliable heat transfer is essential to the performance and service life of telecommunications infrastructure. From 5G base stations and RF amplifiers to optical modules, network switches, and power supplies, thermal interface materials help bridge mechanical gaps and improve heat transfer to designated cooling structures.

A suitable thermal pad should be selected through a balanced assessment of thermal resistance, thickness, compressibility, electrical insulation, environmental durability, and manufacturing requirements. Choosing the right pad thermal solution means evaluating the actual interface and confirming performance through testing, not simply selecting the highest conductivity value.

By assessing the complete thermal path and matching material characteristics to application requirements, telecommunications equipment manufacturers can improve thermal design consistency and support long-term system reliability. TOUSEN's silicone thermal pad range provides a starting point for engineers evaluating thermal interface solutions for communications electronics.
